Make accurate raker cuts faster with The Quick Rake. Designed for technical-rescue shoring operations, this compact marking guide lays out the 45-degree and 60-degree cuts used when constructing rakers for trench and wall stabilization.

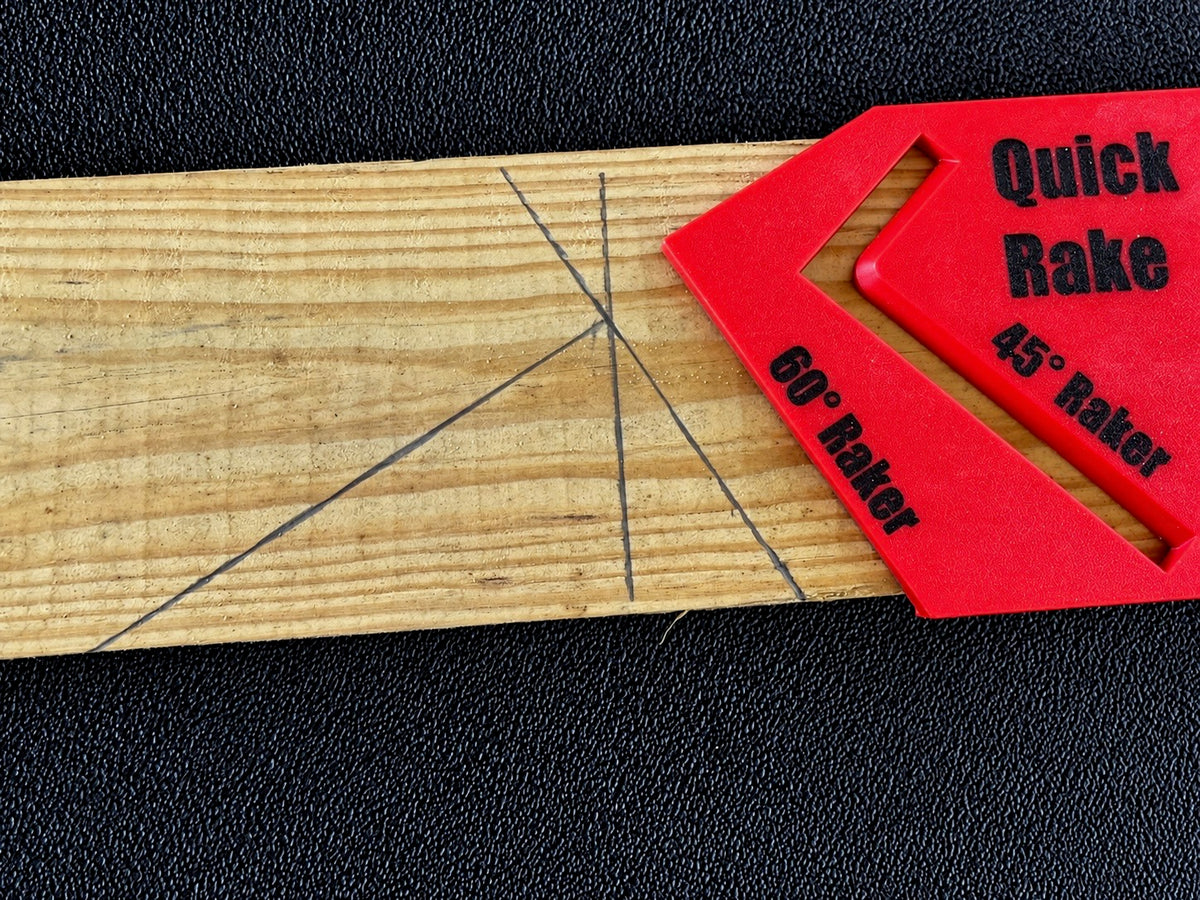

Place the guide against the lumber, mark the starting point and required raker length, then trace the appropriate angle. Reposition the tool and use its straight edge to extend each line before cutting.
Key Features
Quickly marks 45° and 60° raker cuts
Designed for technical-rescue trench and wall shoring
Integrated 1-inch, 2-inch and 3-inch reference markings
Clearly labeled tracing guides and top-direction indicator
Works as a straightedge for extending cut lines
Compact design for apparatus storage, field use and training
Choice of body color and text color
Optional custom department, apparatus or unit identification up to 8 characters
How to Use
Place The Quick Rake flush with the end of the lumber and mark the starting point.
Measure the required overall raker length and mark the lumber.
Align the tool’s point with the length mark and trace the appropriate 45° or 60° line.
Reposition the tool and use its straight edge to extend the lines before cutting.
Custom text: Select “Yes” under Add Custom Text and enter up to 8 characters in the custom text field.
